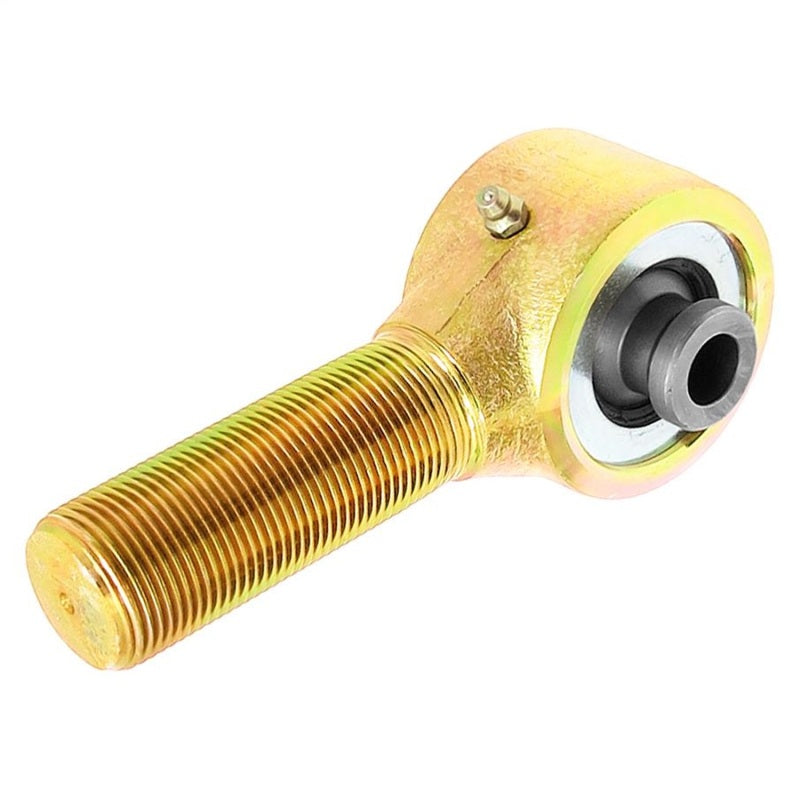

RockJock Johnny Joint 2-1/2in Narrow Forged Rod End (1-1/4in -12 LH Threads - 2.750in x 14mm Ball) - product image

RockJock Johnny Joint 2-1/2in Narrow Forged Rod End (1-1/4in -12 LH Threads – 2.750in x 14mm Ball)

Code: ROKRJ-331403-101

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 2.750 in. mounting width ball with a 14mm thru bolt hole. Finished in gold zinc plating.

SKU
ROKRJ-331403-101
Brand
ZEDUO

$72.00

In Stock
Available to order

Stock or production lead time is confirmed after checkout or enquiry.

International shipping, duties and delivery time depend on the destination. For oversized or wholesale orders, request a shipping quote before payment.

Request a shipping or wholesale quote →
Shipping confirmation required. The displayed product price excludes international shipping, import duties, taxes and brokerage unless stated in a written quotation. Request a shipping or wholesale quote.

Buying for your business?

Build a parts list for a bulk quotation. Confirm quantities, packing and delivery requirements with our team.

View enquiry list 0

Description

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 2.750 in. mounting width ball with a 14mm thru bolt hole. Finished in gold zinc plating.
